Description

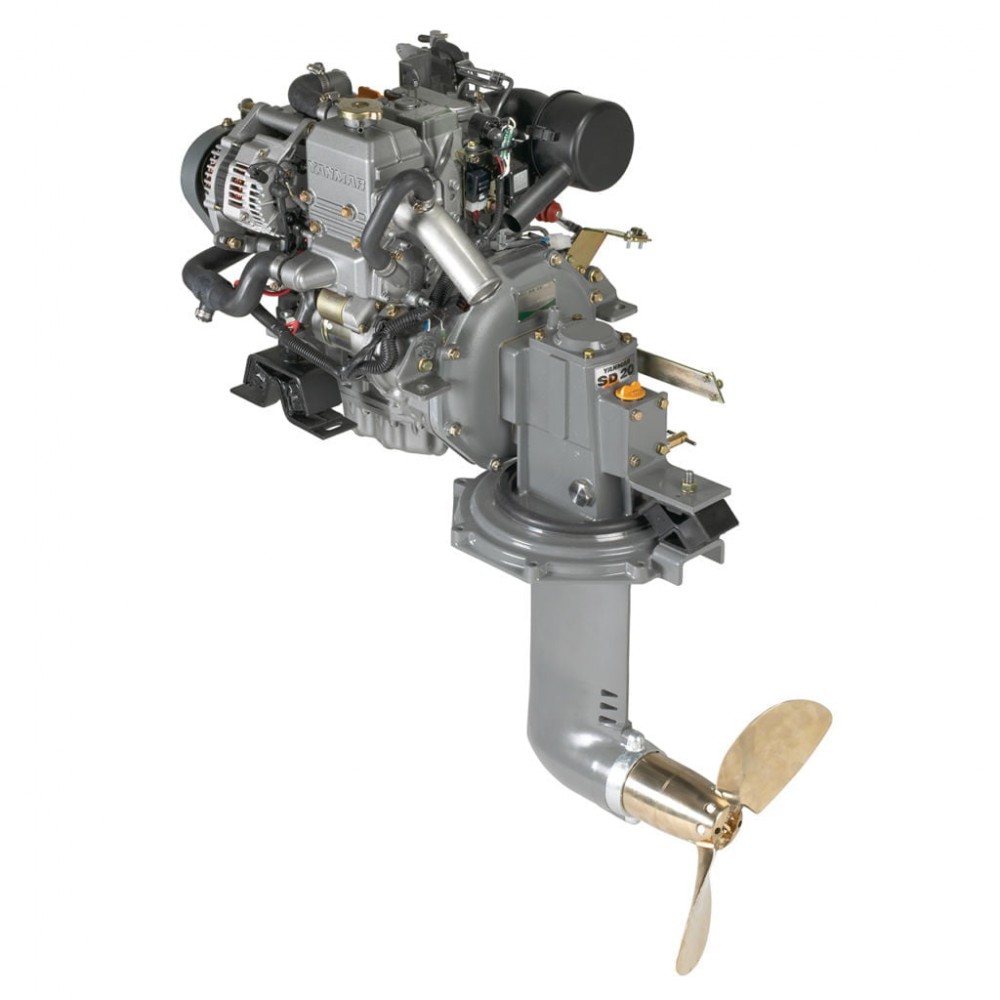

Yanmar SailDrive SD60 for 3JH5E, 3JH40, 4JH5E, 4JH45, 4JH4-TE, 4JH57, and 4JH80 Engines
*PRICES EX WORKS – ADDITIONAL CUSTOMS FEES AND DUTY MAY APPLY
The SD60 is a YANMAR designed and developed sail drive that is custom engineered to match the 3JH5E, 3JH40, 4JH5E, 4JH45, 4JH4-TE, 4JH57, and 4JH80. The SD60 comes with 2 bell housing sizes to accommodate a large engine range. The proprietary design connects seamlessly with YANMAR engine’s smaller dedicated marine built housings. This direct connection not only contributes to the compact size of the propulsion system but also reduces the need for adapters or couplings, resulting in a smaller rotational mass and therefore reduced vibration. This purpose-built and complimentary propulsion system maximizes the already efficient sail drive performance.
Additionally, the SD60 is designed for easy maintenance, with the ability to change the oil without hauling your boat out.
MODELS
SD60-5 SAILDRIVE 2.23-S FOR JH SERIES CODE SD60-5
SK60-4 SAILDRIVE 2.23-S FOR JH TURBO SERIES CODE SD60-4
ALL MODELS AVAILABLE FOR PRE-ORDER
SPECIFICATIONS:
Type SailDrive
Clutch Type Mechanical multiple friction plate
Bell Housing size SAE #4, SAE #5
Reduction Ratio 2.23/2.23 | 2.49/2.49
Dry Weight 43.6kg
Direction of Rotation I/P Counterclockwise
